Lite Force / LF Magnum
Built 1997–1999. Serial numbers start with LM. Not your bow? Pick another
1
Which size?
Pick yours by draw length, or match the paint on your cable ends below.
Label worn off?
Look at the ends of your cables, near the loops. Oneida painted them to mark the size. Pick the row that matches. On this bow the power cable is painted on its crimped end only; the other end sits in a clevis under the power limb. Yoke cables are painted on both ends.
| Size | Power cable ends | Yoke cable ends |
|---|---|---|
Tan on the crimped end only |
Orange both ends |
|
Yellow on the crimped end only |
Copper one end, Pink the other |
|
Yellow on the crimped end only |
Copper one end, Blue the other |
Your answer shows here
Pick your size to see the string length and cable colors
Each size has its own string length. Oneida also painted the cable ends to mark the size, and where two sizes share colors we point it out.
Lite Force / LF Magnum · ShortOneida spec
43 1/4inch string
Draw length
25–28″
Brace height
6 1/2–6 3/4″
String material
BCY 452X
Cams
K-Cam with Veri-Eze modules
Oneida's manual for the T-III, Aero Force and Lite-Force says Veri-Eze cams and modules. From our shop: they're K-Cams, one at each end, not the split K-Cam of the Black Eagle and later bows.
Power cable
Tan on the crimped end only
Yoke cable
Orange both ends
Lite Force / LF Magnum · MediumOneida spec
43 1/4inch string
Draw length
28–31″
Brace height
6 1/2–6 3/4″
String material
BCY 452X
Cams
K-Cam with Veri-Eze modules
Oneida's manual for the T-III, Aero Force and Lite-Force says Veri-Eze cams and modules. From our shop: they're K-Cams, one at each end, not the split K-Cam of the Black Eagle and later bows.
Power cable
Yellow on the crimped end only
Yoke cable
Copper one end, Pink the other
Lite Force / LF Magnum · LongOneida spec
46 7/8inch string
Draw length
31–34″
Brace height
7 7/8–8 1/8″
String material
BCY 452X
Cams
K-Cam with Veri-Eze modules
Oneida's manual for the T-III, Aero Force and Lite-Force says Veri-Eze cams and modules. From our shop: they're K-Cams, one at each end, not the split K-Cam of the Black Eagle and later bows.
Power cable
Yellow on the crimped end only
Yoke cable
Copper one end, Blue the other
2

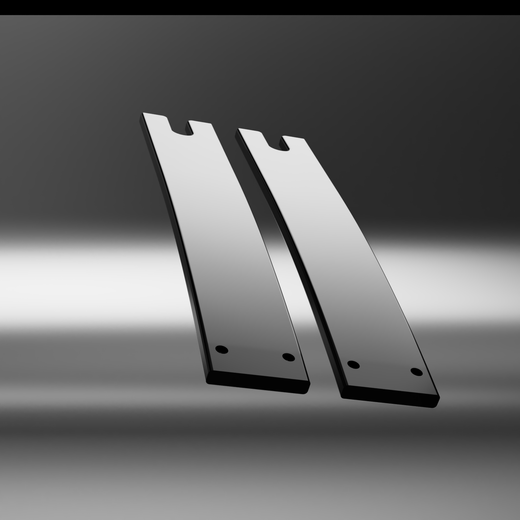

Strings, cables and parts for the Lite Force / LF Magnum
Strings and cables are built to your size, so pick your size above first. Everything else can go straight in the cart.
